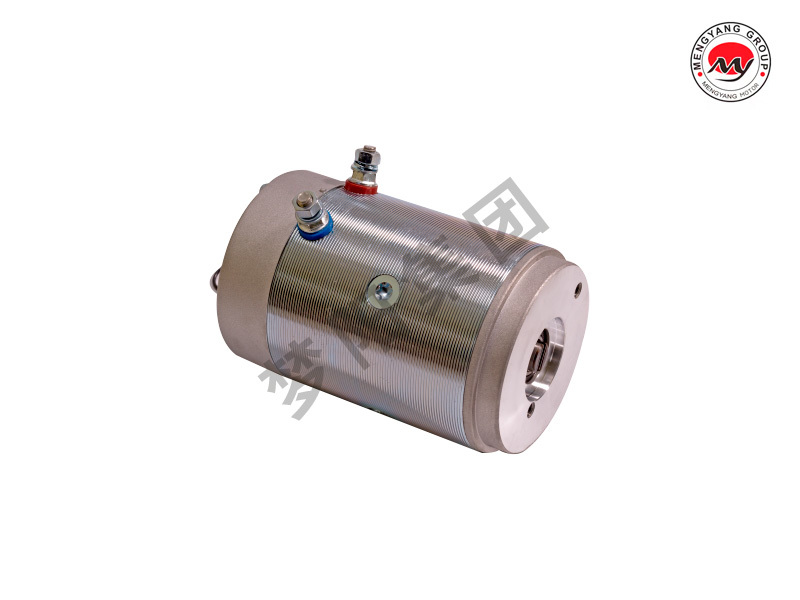

Tail Gate Motor
Automobile tailboard motor features:
Single/double terminal design, series excitation and compound excitation;
Provide UL designed motors, CE designed motors, RoHs designed motors and motors designed according to customer requirements as required;
High quality temperature controller and startup switch can be installed;
Low noise, low current, good workmanship and low price;
The motor has strong overload capacity, long service life, low heating, waterproof and dust-proof up to IP67;
Easy maintenance, replaceable carbon brush and reliable operation.
Tests involved:
The company can test motor durability test, high and low temperature test, vibration test, salt spray test, waterproof test, noise test, etc
Customization scope:
Speed range: 2200~4200 rpm;
Working voltage: 12V, 24V, 36V, 48V, 60V, 72V;
Working torque: 2.0-20 N.m;
Motor power: 1.2-4.0Kw.
Based on the above parameters such as power, we can design the motor according to customer requirements
